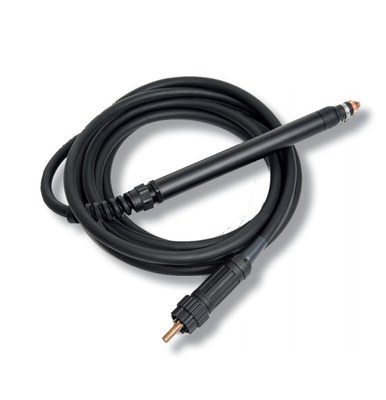

CEBORA CP 70C DAR torch

[Art. 1627 - 1627.15]

CEBORA CP 70C original torch for plasma cutting. On air ignition. Without high-frequency.

  • [Art. 1627] 6 m - torch for profile machine. With central adaptor
  • [Art. 1627.15] 15 m torch for profile machine. With central adaptor

Must be coupled with [Art. 441]

Download

Tabelle di Taglio / Cutting tables
(PDF, 3.3 MB) #Multilingua#3300514-F
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 1.8 MB)
The registered trademark CP identifies Cebora original consumables for plasma power sources.Cebora strongly recommends the use of original CP consumables, as they are the only parts capable of guaranteeing the expected power source-torch combination performance. The geometry and materials chosen for CP consumables are decided when the power source and the torch are designed, and represent the best compromise between part performance, reliability and lifetime, in compliance with IEC 60974-7 standards.

 Technical specifications

70 A 100%

Service factor (10 min. 40° C)
According to IEC 60974.1 standards

6 m (20 ft)
15 m (50 ft)

Length Art. 1627
Length Art. 162.15

2.700 kg
6.300 kg

Weight Art. 1627
Weight Art. 1627.15

Art. Description
1155 Torch body for straight torches

2002

Pack of sealing rings (5 parts)

2723

Pack of 0.9 mm dia. nozzles (10 parts). Use from 20 to 45 A

2724

Pack of 1.1 mm dia. nozzles (10 parts). Use from 46 to 70 A
2958 Nozzle shield (2 parts)

2363

Pack of electrodes (5 parts).
Use from 20 to 70 A

2908

Nozzle holder

2855

Diffuser (2 parts)
